策略模式+责任链

设计模式

发布于：Jul 3, 2025

次浏览

1.6k words

7 min

为了解决项目中同一个业务场景，不同场景的实现方式，或者不同环境下多种实现逻辑的问题，避免过多 elsde if 导致后期维护灾难，引用了设计模式来处理这个问题。

思考
  • 如何让我们的代码更好维护，并且保证良好的可读性
  • 公共逻辑如何抽离
  • 流程多的话，后期如何维护，如何在原有的基础上新增逻辑，比如提交数据：数据校验、保存数据、发送消息、推送三方数据，复杂的流程如何保证单一职责

这里我们以简单的一个提交操作为例

策略模式+责任链.drawio

代码如下

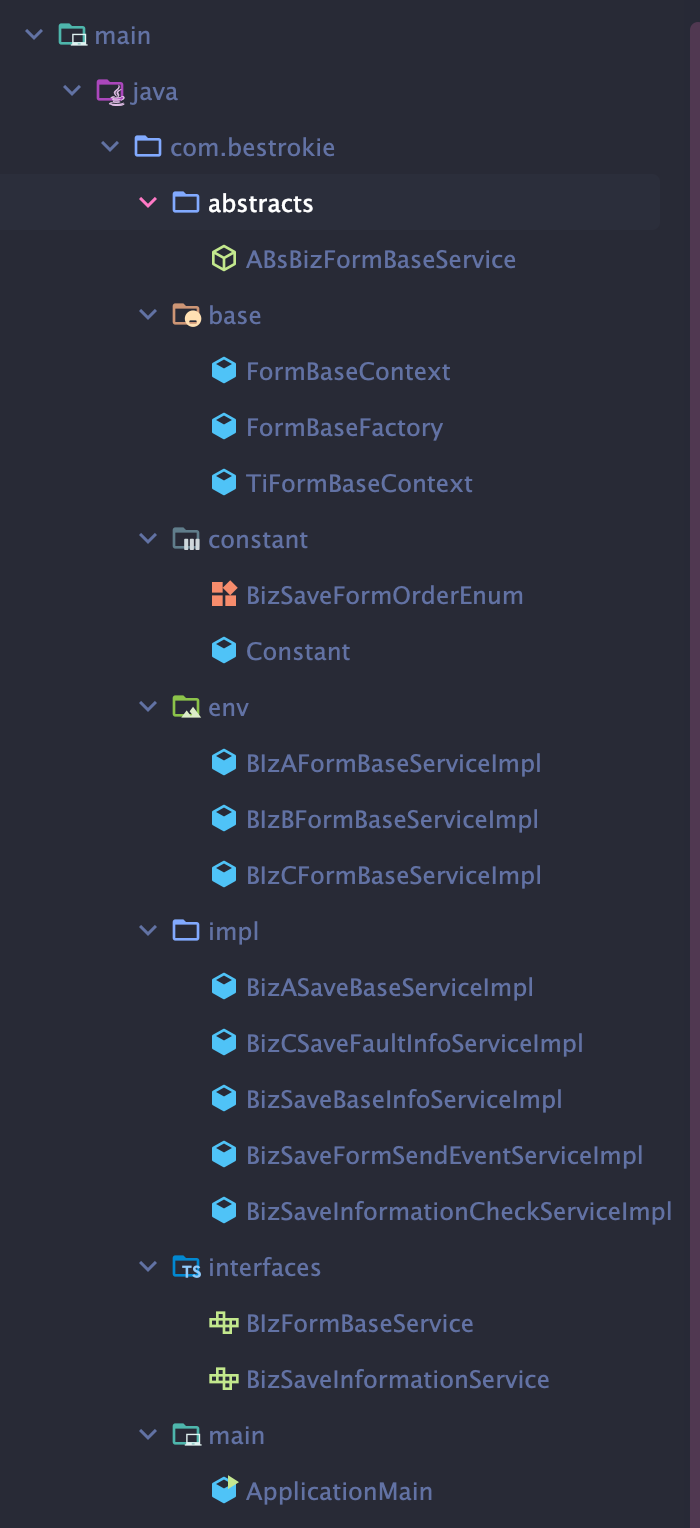

image-20250706152901212

首先定义上下文，也就是提交的信息实体

基础上下文
1
2
public class FormBaseContext {
}

主要的作用是作为一个标识，可能不同的环境内容不同，但是只要以此为父类，我们的方法都可以执行

定义接口
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public interface BIzFormBaseService <T extends FormBaseContext>{
    /**
     * 提交
     * @param context 文本
     */
    void submit(T context);

    /**
     * 保存
     * @param context 文本
     */
    void save(T context);

    /**
     * 获取详情
     * @param orderId id
     */
    void getDetails(String orderId);
}

对业务行为进行定义，这里只有几个简单的，便于理解，下面对提交这个行为，不同环境，不同实现的处理

具体环境，行为定义接口
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public interface BizSaveInformationService {
    /**
     * 执行排序
     * @return 顺序
     */
    Integer getOrder();

    /**
     * 获取执行环境
     * @return 环境
     */
    String getEnvironment();

    /**
     * 执行核心逻辑
     * @param context 文本
     */
    void handle(FormBaseContext context);
}

这个接口是对提交这个行为的进行的细分后的定义，提交包含了多个行为，根据行为的优先级排序然后顺序执行。

定义抽象类
核心抽象类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public abstract class ABsBizFormBaseService implements BIzFormBaseService<FormBaseContext> {
    public abstract List<BizSaveInformationService> getTiSaveInformationService();

    @Override
    public void submit(FormBaseContext context) {
        for (BizSaveInformationService bizSaveInformationService : getTiSaveInformationService()) {
            bizSaveInformationService.handle(context);
        }
    }

    @Override
    public void save(FormBaseContext context) {
        System.out.println("执行 save 方法-----------");

    }

    @Override
    public void getDetails(String orderId) {
        System.out.println("获取 orderId 详情信息");
    }

    public List<BizSaveInformationService> init(FormBaseFactory factory, String env){
        factory.registerTiFormWritesService(env, this);
        Map<Integer, BizSaveInformationService> tiSaveInformationServiceMap = getTiSaveInformationService().stream()
                .filter(service -> Arrays.asList(Constant.DEFAULT_ENV, env).contains(service.getEnvironment()))
                .collect(Collectors.toMap(BizSaveInformationService::getOrder, Function.identity(),
                        ((tiSaveInformationService, tiSaveInformationService2) ->
                                env.equals(tiSaveInformationService.getEnvironment()) ?
                                        tiSaveInformationService : tiSaveInformationService2)));
        return new ArrayList<>(tiSaveInformationServiceMap.values()).stream()
                .sorted(Comparator.comparing(BizSaveInformationService::getOrder)).collect(Collectors.toList());
    }
}

抽象类是整个设计的核心，集体方法的执行逻辑在这里定义，init()方法，用来筛选出某个环境的需要执行的方法，并根据优先级进行排序，也就是责任链的实现。

环境定义
环境 A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public class BIzAFormBaseServiceImpl extends ABsBizFormBaseService implements BIzFormBaseService <FormBaseContext> {
    private final FormBaseFactory formBaseFactory;
    private static final String environment = "A";
    private List<BizSaveInformationService> bizSaveInformationServiceList;
    @Override
    public List<BizSaveInformationService> getTiSaveInformationService() {
        return bizSaveInformationServiceList;
    }

    public void init(){
        formBaseFactory.registerTiFormWritesService(environment, this);
        Map<Integer, BizSaveInformationService> tiSaveInformationServiceMap = bizSaveInformationServiceList.stream()
                .filter(service -> Arrays.asList(Constant.DEFAULT_ENV, environment).contains(service.getEnvironment()))
                .collect(Collectors.toMap(BizSaveInformationService::getOrder, Function.identity(),
                        ((tiSaveInformationService, tiSaveInformationService2) ->
                                environment.equals(tiSaveInformationService.getEnvironment()) ?
                                        tiSaveInformationService : tiSaveInformationService2)));
        bizSaveInformationServiceList = new ArrayList<>(tiSaveInformationServiceMap.values()).stream()
                .sorted(Comparator.comparing(BizSaveInformationService::getOrder)).collect(Collectors.toList());

    }

    public BIzAFormBaseServiceImpl(FormBaseFactory factory, List<BizSaveInformationService> bizSaveInformationServiceList){
        this.formBaseFactory = factory;
        this.bizSaveInformationServiceList = bizSaveInformationServiceList;
    }
}
环境 B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class BIzBFormBaseServiceImpl extends ABsBizFormBaseService implements BIzFormBaseService <FormBaseContext> {
    private FormBaseFactory formBaseFactory;
    private static final String environment = "B";
    private List<BizSaveInformationService> bizSaveInformationServiceList;
    @Override
    public List<BizSaveInformationService> getTiSaveInformationService() {
        return bizSaveInformationServiceList;
    }

    public void init(){
        formBaseFactory.registerTiFormWritesService(environment, this);
        Map<Integer, BizSaveInformationService> tiSaveInformationServiceMap = bizSaveInformationServiceList.stream()
                .filter(service -> Arrays.asList(Constant.DEFAULT_ENV, environment).contains(service.getEnvironment()))
                .collect(Collectors.toMap(BizSaveInformationService::getOrder, Function.identity(),
                        ((tiSaveInformationService, tiSaveInformationService2) ->
                                environment.equals(tiSaveInformationService.getEnvironment()) ?
                                        tiSaveInformationService : tiSaveInformationService2)));
        bizSaveInformationServiceList = new ArrayList<>(tiSaveInformationServiceMap.values()).stream()
                .sorted(Comparator.comparing(BizSaveInformationService::getOrder)).collect(Collectors.toList());
    }

    public BIzBFormBaseServiceImpl(FormBaseFactory formBaseFactory, List<BizSaveInformationService> bizSaveInformationServiceList) {
        this.formBaseFactory = formBaseFactory;
        this.bizSaveInformationServiceList = bizSaveInformationServiceList;
    }
}
环境 C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class BIzCFormBaseServiceImpl extends ABsBizFormBaseService implements BIzFormBaseService <FormBaseContext> {
    private static final String environment = "C";
    private List<BizSaveInformationService> bizSaveInformationServiceList;
    @Override
    public List<BizSaveInformationService> getTiSaveInformationService() {
        return bizSaveInformationServiceList;
    }


    public BIzCFormBaseServiceImpl(FormBaseFactory formBaseFactory, List<BizSaveInformationService> bizSaveInformationServiceList) {
        this.bizSaveInformationServiceList = bizSaveInformationServiceList;
        this.bizSaveInformationServiceList = init(formBaseFactory, environment);
    }
}

对于公共的逻辑可以像环境 c一样抽成一个公共的实现，放在初始化的时候执行，这里实现的两种方式只是为了提供思路

对于提交动作的执行方法
环境 A保存逻辑
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class BizASaveBaseServiceImpl implements BizSaveInformationService {
    @Override
    public Integer getOrder() {
        return BizSaveFormOrderEnum.A_SAVE_BASE_FORM.getOrder();
    }

    @Override
    public String getEnvironment() {
        return "A";
    }

    @Override
    public void handle(FormBaseContext context) {
        System.out.println("A环境保存基本信息逻辑");
    }
}
环境 C 保存逻辑
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class BizCSaveFaultInfoServiceImpl implements BizSaveInformationService {
    @Override
    public Integer getOrder() {
        return BizSaveFormOrderEnum.DEFAULT_C_SAVE_FAULT_INFO_FORM.getOrder();
    }

    @Override
    public String getEnvironment() {
        return "C";
    }

    @Override
    public void handle(FormBaseContext context) {
        System.out.println("C环境保存故障信息--------");
    }
}
默认环境保存逻辑
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class BizSaveBaseInfoServiceImpl implements BizSaveInformationService {
    @Override
    public Integer getOrder() {
        return BizSaveFormOrderEnum.DEFAULT_SAVE_BASE_FORM.getOrder();
    }

    @Override
    public String getEnvironment() {
        return Constant.DEFAULT_ENV;
    }

    @Override
    public void handle(FormBaseContext context) {
        System.out.println("保存基本信息逻辑==========");
    }
}
保存后发送事件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class BizSaveFormSendEventServiceImpl implements BizSaveInformationService {
    @Override
    public Integer getOrder() {
        return BizSaveFormOrderEnum.DEFAULT_SAVE_SEND_EVENT_FORM.getOrder();
    }

    @Override
    public String getEnvironment() {
        return Constant.DEFAULT_ENV;
    }

    @Override
    public void handle(FormBaseContext context) {
        System.out.println("发送事件==========");
    }
}

保存前检查信息逻辑
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class BizSaveInformationCheckServiceImpl implements BizSaveInformationService {
    @Override
    public Integer getOrder() {
        return BizSaveFormOrderEnum.DEFAULT_SAVE_FORM_CHECK.getOrder();
    }

    @Override
    public String getEnvironment() {
        return Constant.DEFAULT_ENV;
    }

    @Override
    public void handle(FormBaseContext context) {
        System.out.println("check===========");
    }
}

以上是不同环境的责任区分，只是作为样例，这里优先级的定义写在了枚举中，这里的实现方式不固定，可以根据具体的业务在选择实现的方式。

责任链优先级
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public enum BizSaveFormOrderEnum {
    DEFAULT_SAVE_FORM_CHECK(10, "保存信息校验"),
    DEFAULT_SAVE_BASE_FORM(20, "保存基本信息"),
    A_SAVE_BASE_FORM(20,"A环境保存故障基本信息"),
    DEFAULT_C_SAVE_FAULT_INFO_FORM(25,"保存故障基本信息-C环境"),
    DEFAULT_SAVE_SEND_EVENT_FORM(30,"保存基本信息发送事件")
    ;
    private final Integer order;
    private final String desc;

    BizSaveFormOrderEnum(Integer order, String desc) {
        this.order = order;
        this.desc = desc;
    }

    public Integer getOrder() {
        return order;
    }

    public String getDesc() {
        return desc;
    }

}
具体调用实现
简单实现
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public class ApplicationMain {
    public static void main(String[] args) {

            List<BizSaveInformationService> bizSaveInformationServiceList = new ArrayList<>();
            bizSaveInformationServiceList.add(new BizASaveBaseServiceImpl());
            bizSaveInformationServiceList.add(new BizCSaveFaultInfoServiceImpl());
            bizSaveInformationServiceList.add(new BizSaveBaseInfoServiceImpl());
            bizSaveInformationServiceList.add(new BizSaveFormSendEventServiceImpl());
            bizSaveInformationServiceList.add(new BizSaveInformationCheckServiceImpl());

        FormBaseFactory factory = new FormBaseFactory();
        BIzAFormBaseServiceImpl bIzAFormBaseService = new BIzAFormBaseServiceImpl(factory, bizSaveInformationServiceList);
        bIzAFormBaseService.init();

        BIzBFormBaseServiceImpl bIzBFormBaseService = new BIzBFormBaseServiceImpl(factory, bizSaveInformationServiceList);
        bIzBFormBaseService.init();
        BIzCFormBaseServiceImpl bIzCFormBaseService = new BIzCFormBaseServiceImpl(factory, bizSaveInformationServiceList);

        BIzFormBaseService a = factory.getTiFormBaseService("C");
        TiFormBaseContext context = new TiFormBaseContext();
        a.submit(context);
    }
}

因为这边用的是 JAVA 最基础的代码，所以对象的创建和初始化，需要手动执行，如果因为 Spring 相关框架使用起来会更加的精简。

源码地址

https://github.com/bestrookie/design_pattern
